PID instruction state machine

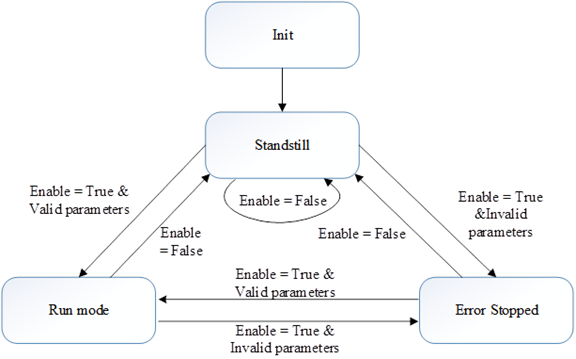

The PID State Machine diagram describes the processing states for the PID instruction.
PID instruction processing state
PID instruction processing state
