Select the filter view

The information displayed in the

e

Procedure

Client view is based upon the current filter, with the exception of the Batch List view, which displays all current batches.

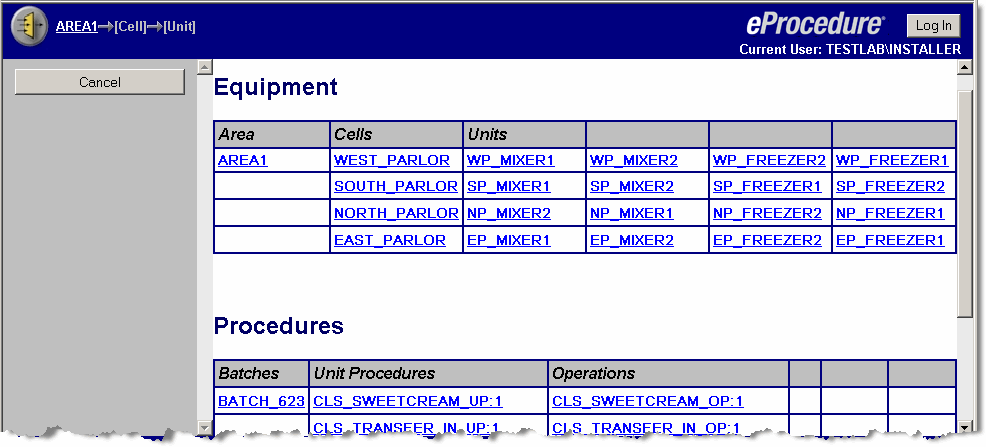

To access the Filter view, click the

Select Filter

button in the Filter area of the

e

Procedure

Client page. The Filter view has two distinct areas: Equipment and Procedures.

The Equipment area contains the area, process cells, and units defined in your area model. Clicking one of the equipment resources returns you to the current view where the information is filtered based upon the selected resource.

The Procedure area displays all batches currently on the Batch List, including their subordinate unit procedures and operations. Phases are not listed here, as they are displayed when an operation is selected. Clicking one of the procedures returns you to the current view, where the information is filtered based on the selected procedure.

If you do not want to change the filter, click

Cancel

to return to the current view.
