Create tags in the Structured Text Editor

On a line in the routine, add an instruction or a statement.

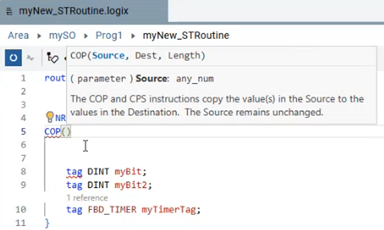

The inline guide dialog indicates the parameters required and describes the type of tag required for each. For example, the inline guide for a COP instruction indicates required Source, Dest, and Length parameters.

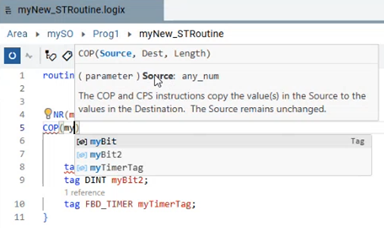

Type a name for a tag, such as myBit. The AutoComplete dialog lists tags that can be referenced from the routine. If the tag you need is listed, select it.

If an existing tag is not available, type a tag name, right-click on it, and select

Create new tag

to open the

Create new tag

dialog.

In the Create New Tag dialog, enter the required settings and select

Create

. See Create a tag for more information on tag settings and requirements.
