FactoryTalk Linx Data Bridge performance reference

Starting from
FactoryTalk Linx Data Bridge
 version 6.20.00, the maximum number of controller tags that can be bridged via
FactoryTalk Linx Data Bridge
 reaches up to 200,000. There are many factors such as the computers' hardware configuration, network loading, and controller communications bandwidth could impact or prevent a system from achieving this high number of tag pairs.
Rockwell Automation
 tests the following scenarios with the test results as a reference.
TIP:
The following data were retrieved from a testing environment. The actual result may be different because of the changes to product firmware, software versions, system or controller network loading. The data was based on
FactoryTalk Linx Data Bridge
 version 6.20.00.
FactoryTalk Linx Data Bridge
 reading from a single controller and writing to a different controller using the single Ethernet module:
  • FactoryTalk Linx
     data server and
    FactoryTalk Linx Data Bridge
     server are installed on the same machine.
  • Hardware information:
    Computer
    • Operating system: Windows 10 Professional edition
    • Processor:
      Intel® Xeon®
       W-2014 CPU @3.2 GHz
    • Memory: 8 GB
    Compute module
    • Operating system: Windows 10 Enterprise 2016 Long-Term Servicing Branch
    • Processor: Intel (R) Atom (TM) CPU E3826 @ 1.46 GHz
    • Memory: 4 GB
    CompactLogix 5480
    • Operating system: Windows 10 Enterprise 2016 Long-Term Servicing Branch
    • Processor:
      Rockwell Automation
       64 bit @2.39 GHz
    • Memory: 6 GB
  • Test results:

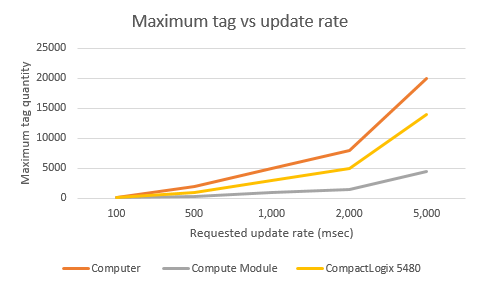

    DB_performance_graphic1
FactoryTalk Linx Data Bridge
 reading from multiple controllers and writing to a different controller using multiple Ethernet modules:
  • FactoryTalk Linx
     data server and
    FactoryTalk Linx Data Bridge
     server are installed on the same computer.
  • Hardware information:
    Computer
    • Operating system: Windows 10 Professional edition
    • Processor: Intel (R) Xeon (R) W-2014 CPU @3.2 GHz
    • Memory: 8 GB
    Controller
    • 1756-L85 ControlLogix Controller
    • 1756-EN2T ControlLogix Controller
  • Test results:
    The number of data pairs is less than 100 and the tags actual update rate in the controller is 100 ms
    Data Pair
    DB Memory (MB)
    Data Bridge.exe CPU (%)
    Destination Tag Actual Update Rate (s)
    20
    22.9
    1
    0.16
    40
    23.9
    1
    0.16
    60
    24.5
    1
    0.16
    80
    25.2
    1
    0.16
    100
    25.6
    1
    0.16
    The number of data pairs is less than 1,000 and the tags actual update rate in the controller is 250 ms
    Data Pair
    DB Memory (MB)
    Data Bridge.exe CPU (%)
    Destination Tag Actual Update Rate (s)
    200
    27.1
    1
    0.29
    400
    31.8
    2
    0.3
    600
    37.1
    2
    0.3
    800
    41.1
    2
    0.31
    1,000
    43.7
    2
    0.32
    The number of data pairs is less than 10,000 and the tags actual update rate in the controller is 500 ms
    Data Pair
    DB Memory (MB)
    Data Bridge.exe CPU (%)
    Destination Tag Actual Update Rate to
    FactoryTalk Linx
     (s)
    Destination Tag Actual Update Rate to
    FactoryTalk Linx
    OPC
     UA Connector (s)
    0
    4.3
    0
    0
    0
    2,000
    61.9
    2
    0.6
    1.1
    4,000
    98.5
    3
    1
    2
    6,000
    119.8
    3
    1.3
    3.1
    8,000
    149.9
    4
    1.7
    4.3
    10,000
    178.2
    5
    2.1
    5.6
    The number of data pairs is less than 100,000 and the tags actual update rate in the controller is 1,000 ms
    Data Pair
    DB Memory (MB)
    Data Bridge.exe CPU (%)
    Destination Tag Actual Update Rate to
    FactoryTalk Linx
     (s)
    Destination Tag Actual Update Rate to
    FactoryTalk Linx
    OPC
     UA Connector (s)
    0
    4.3
    0
    0
    0
    10,000
    186.57
    4
    2.1
    5.3
    20,000
    313.9
    6
    3.6
    10
    30,000
    440.7
    8
    3.6
    10
    40,000
    568.2
    11
    3.6
    10
    50,000
    703.8
    13
    3.6
    10.6
    60,000
    833.9
    17
    4.2
    11.8
    70,000
    974.2
    19
    5.3
    13.7
    80,000
    1099.8
    20
    7
    15.6
    90,000
    1229.4
    22
    10
    20
    100,000
    1361.1
    23
    18.5
    30.3
