Indicators and LEDs

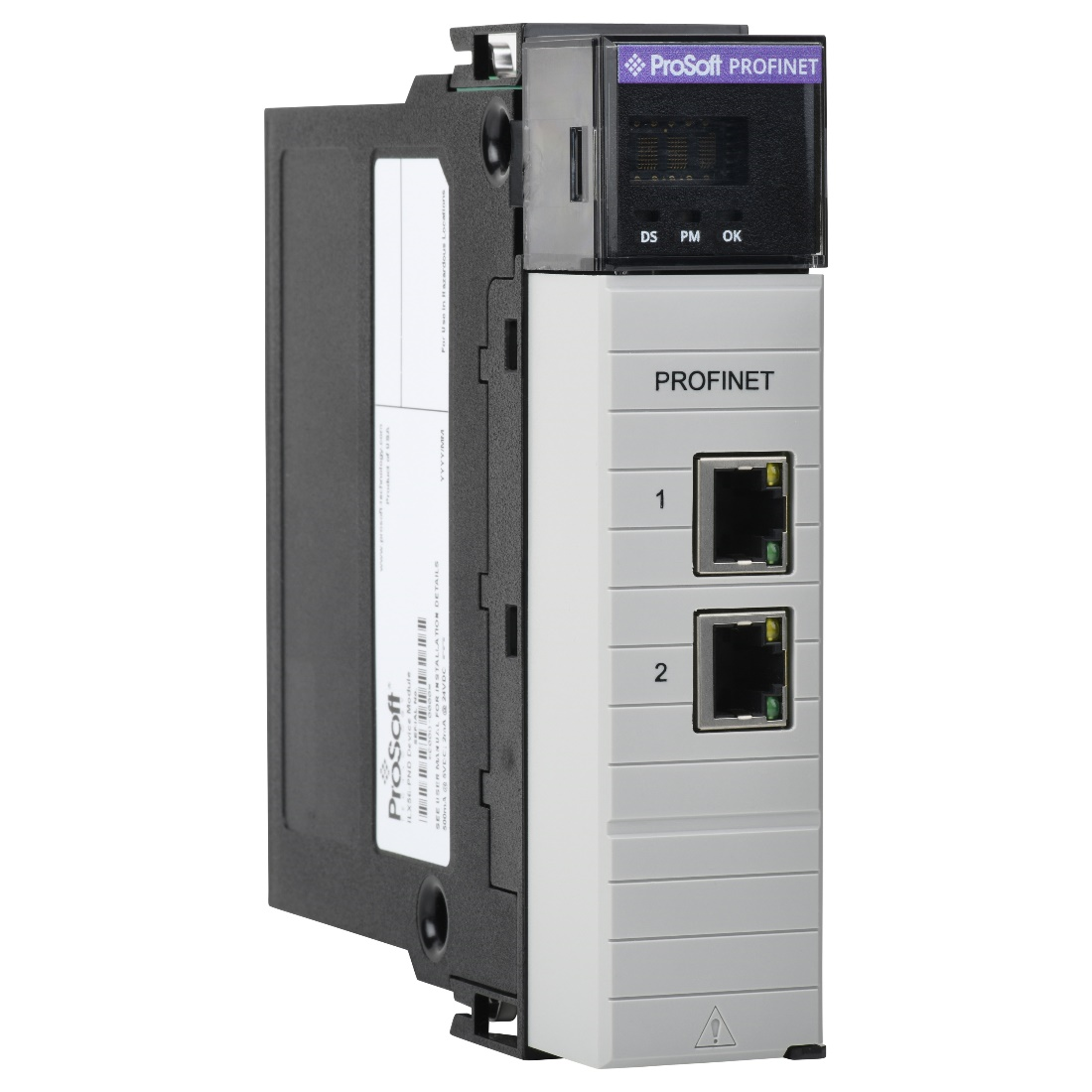

device image
The ILX56-PND LEDs and LCD display indicate diagnostic information. The tables below show the activity of each LED and the operation of the LCD display.

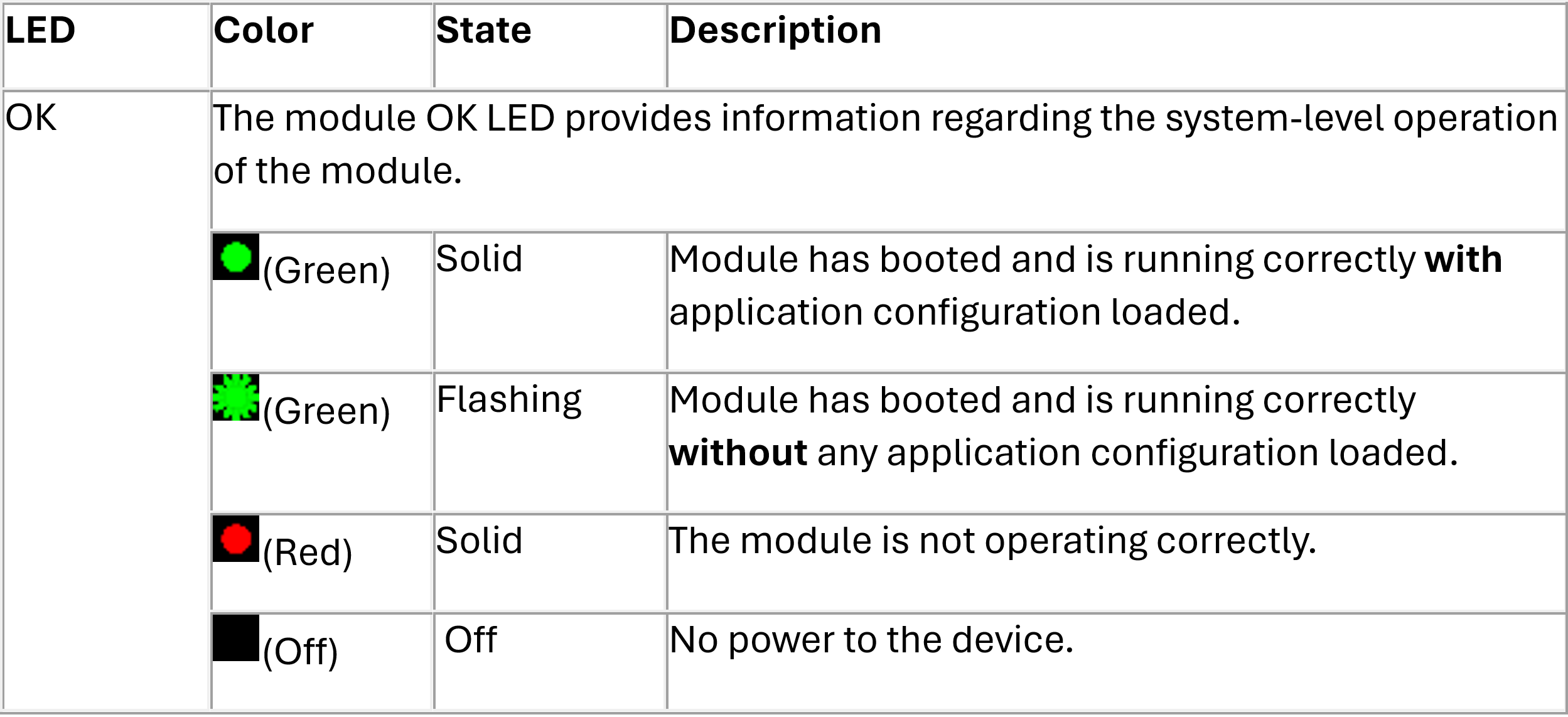

table of OK LED states

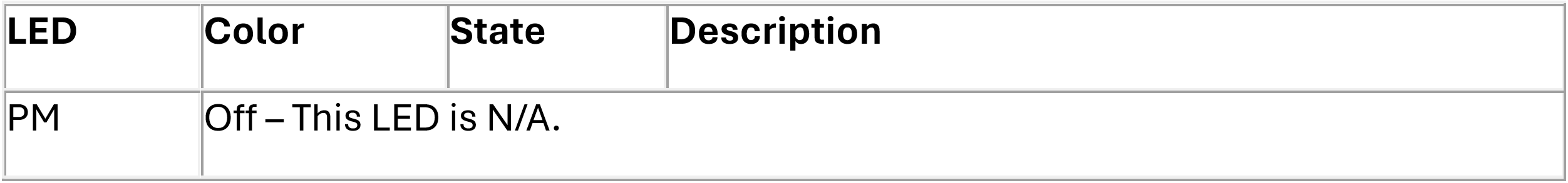

table of PM LED states

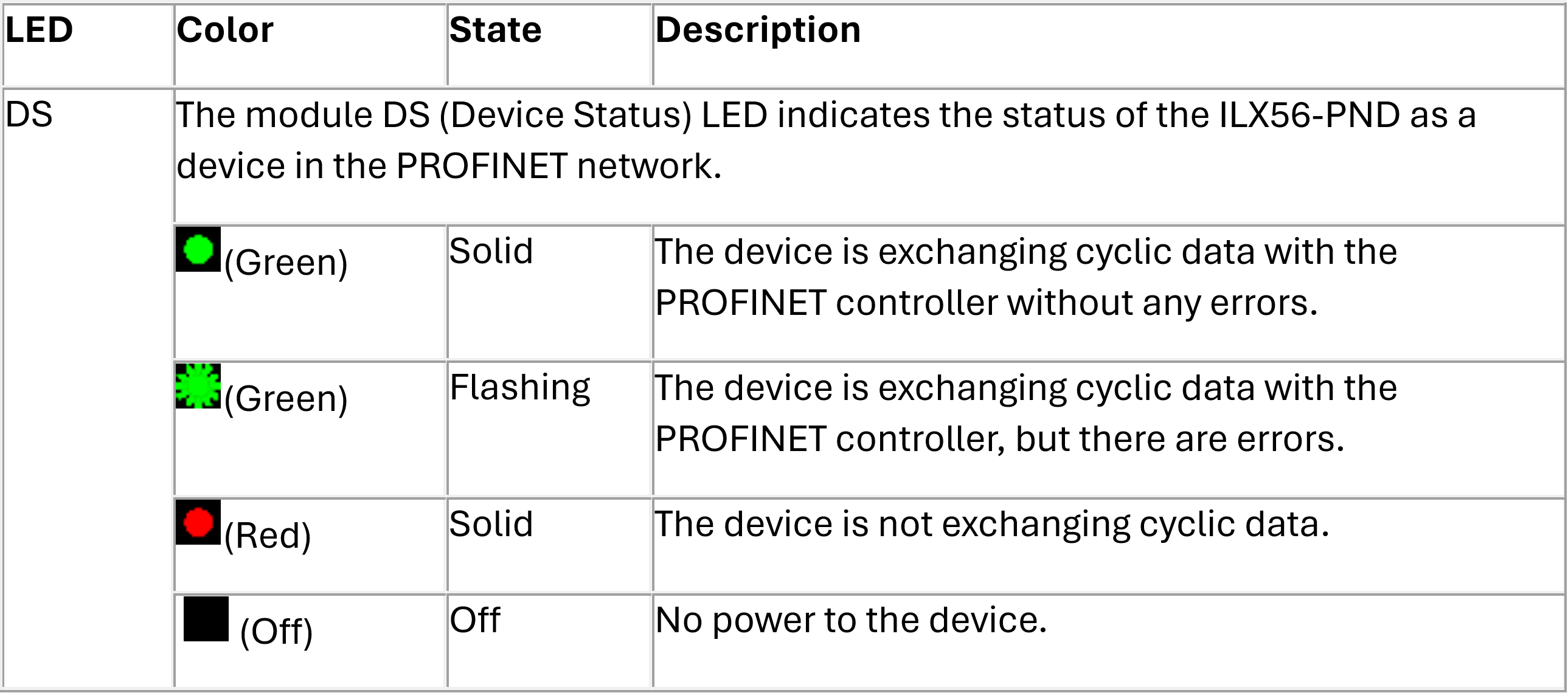

table of DS LED states

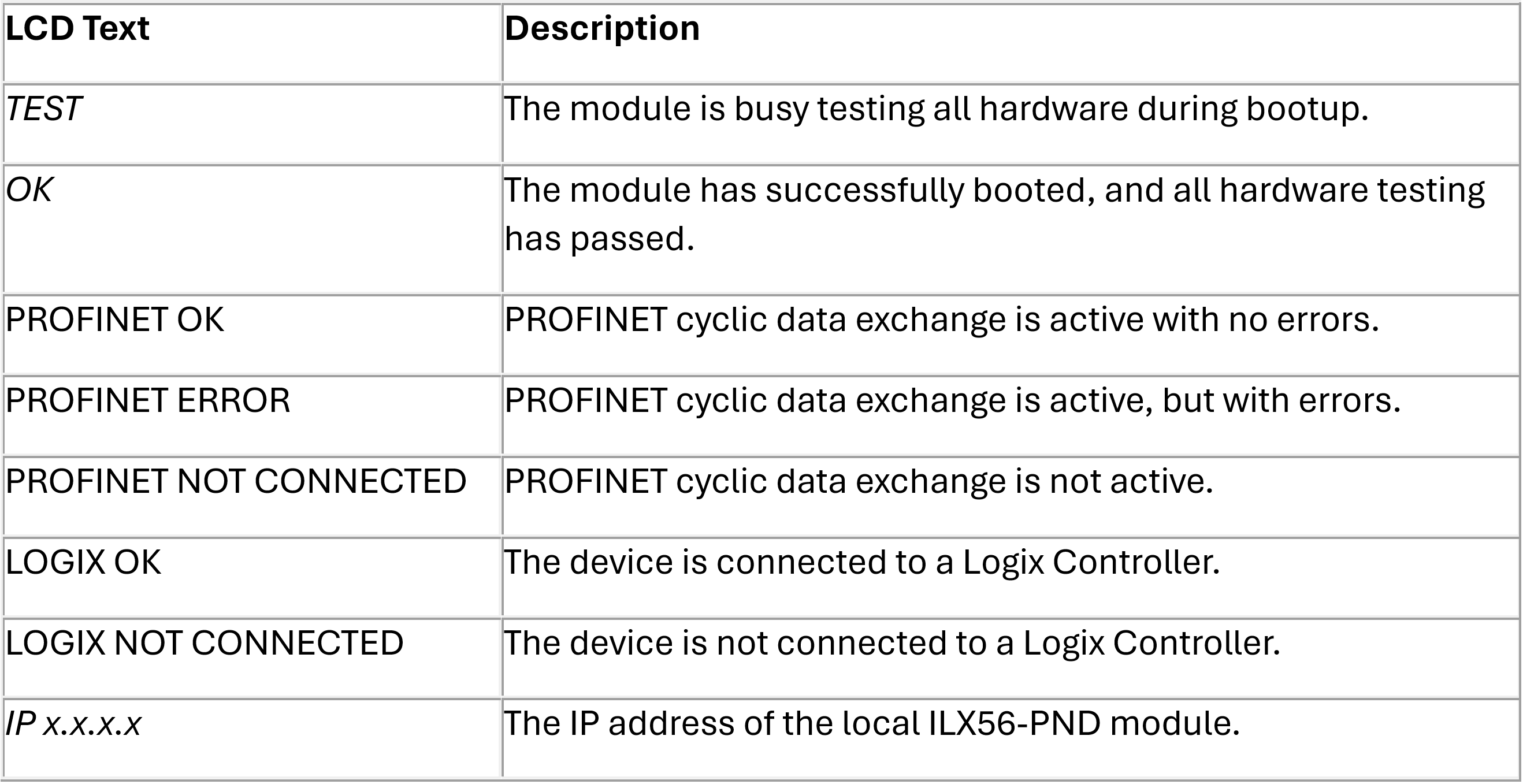

table of LCD text display
