Indicators and LEDs

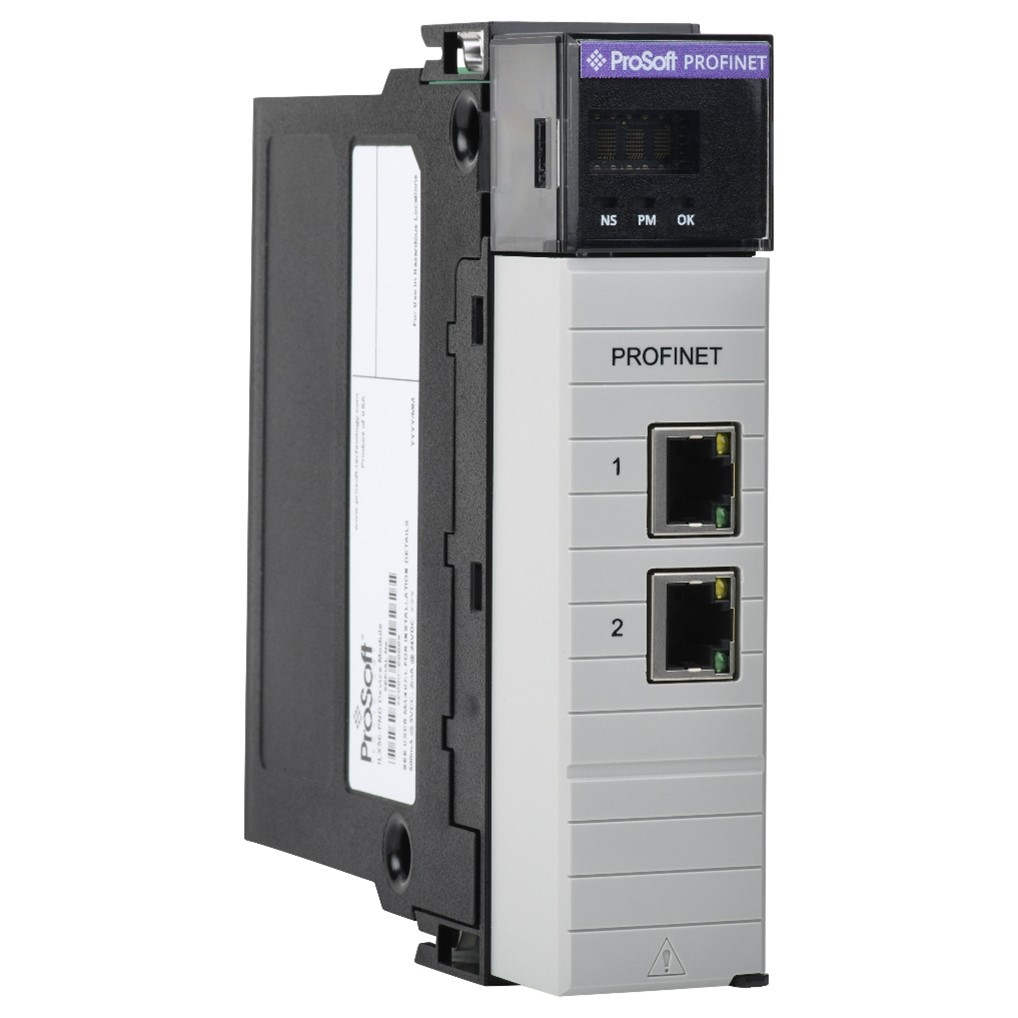

Device image
The ILX56-PNC LEDs and LCD display indicate diagnostic information. The tables below show the activity of each LED and the operation of the LCD display.

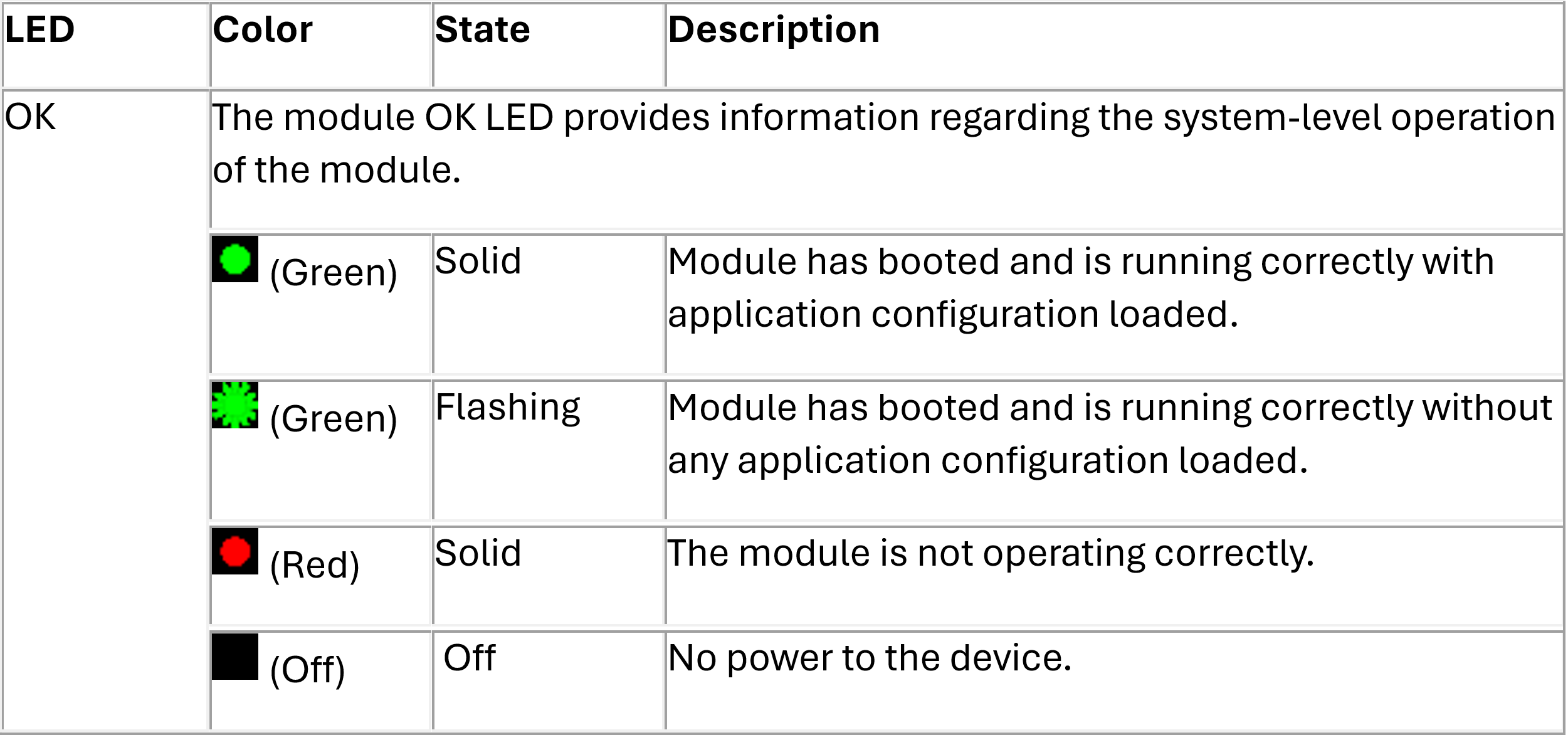

OK LED state table

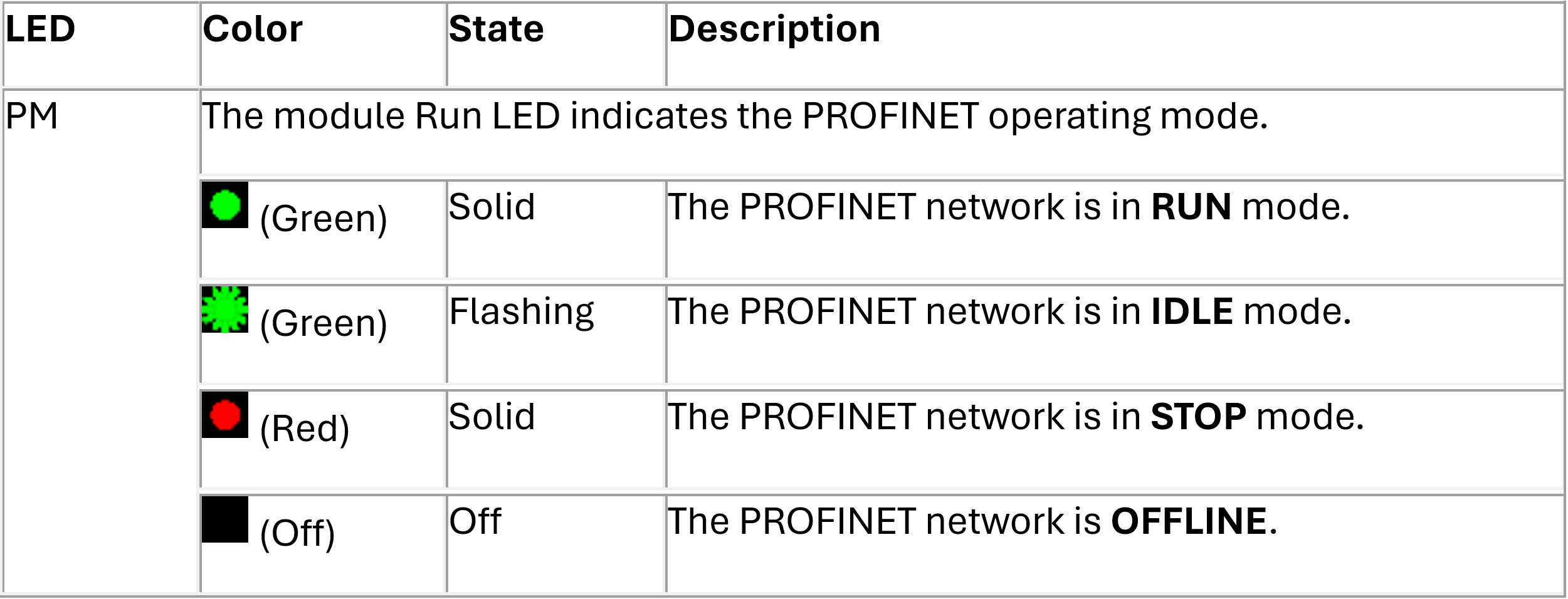

PM LED state table

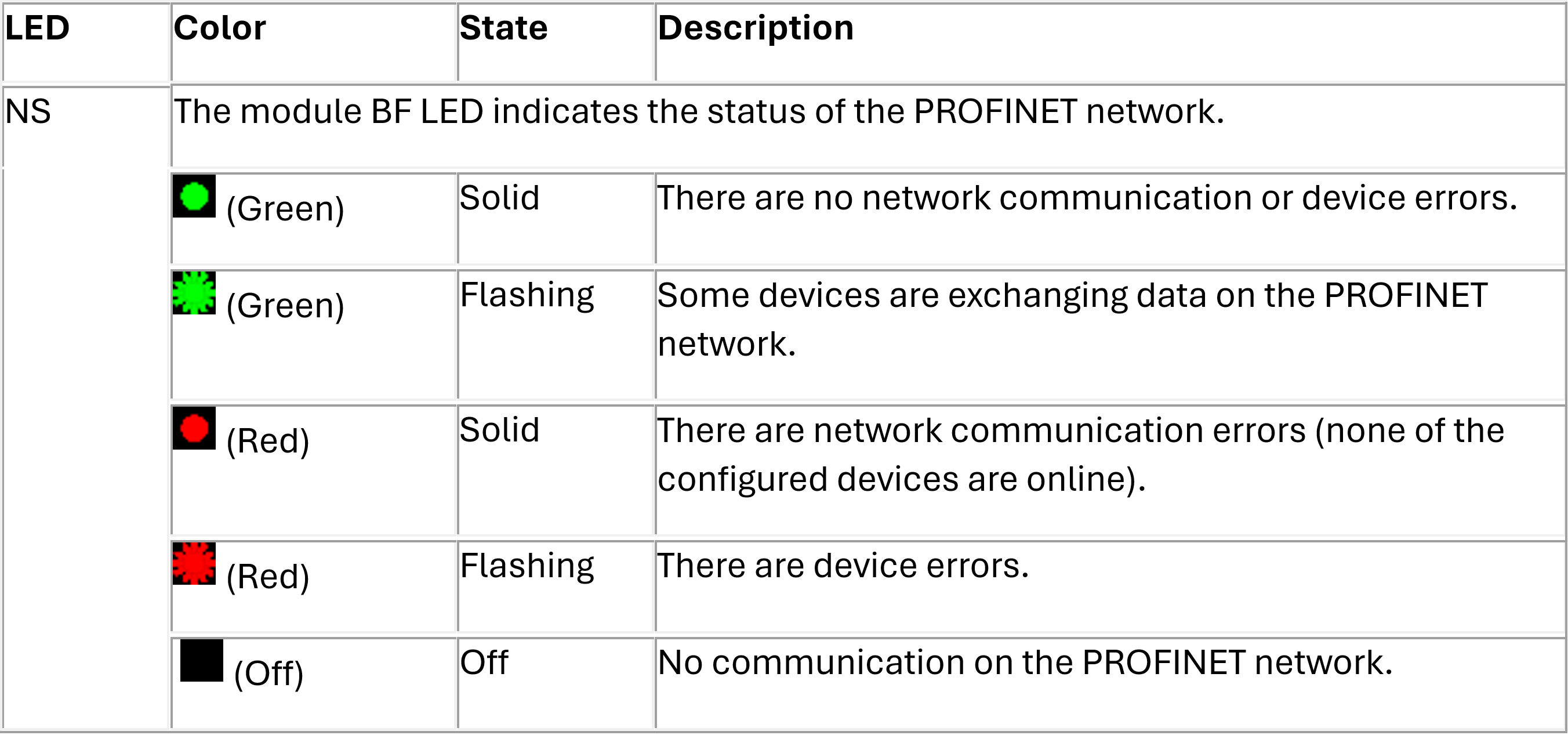

NS LED state table

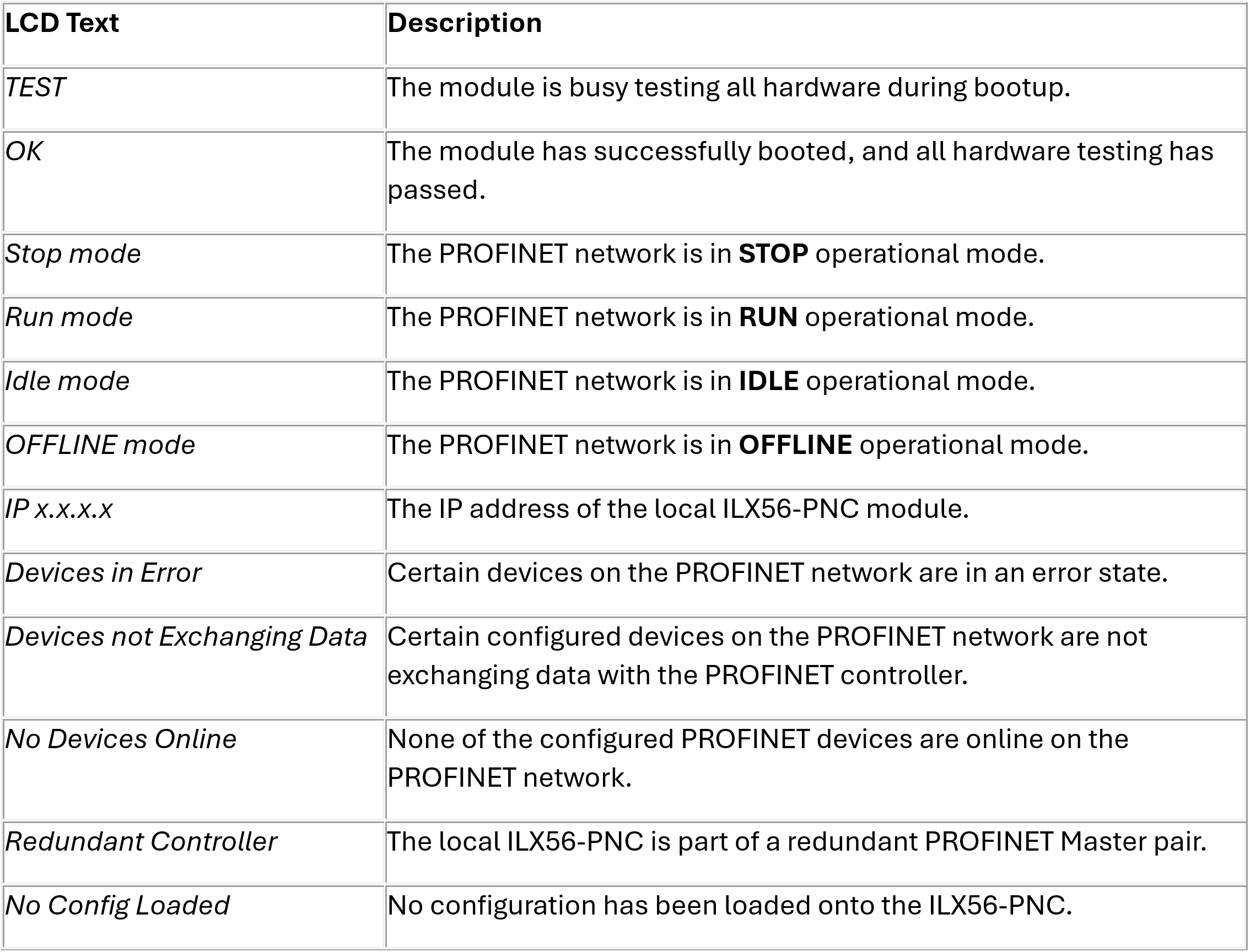

LCD text display table
