Output Operation

FLEX 5000®
safety output modules can be configured with single or dual point operation types:
  • A single point operation type allows the outputs to turn on and off individually and to fault independently.
  • A dual point operation type verifies that safety task logic operates both outputs as a pair. If one output has a module fault, the other output goes to the safe state.
IMPORTANT: The point operation type affects the safety rating of the module.

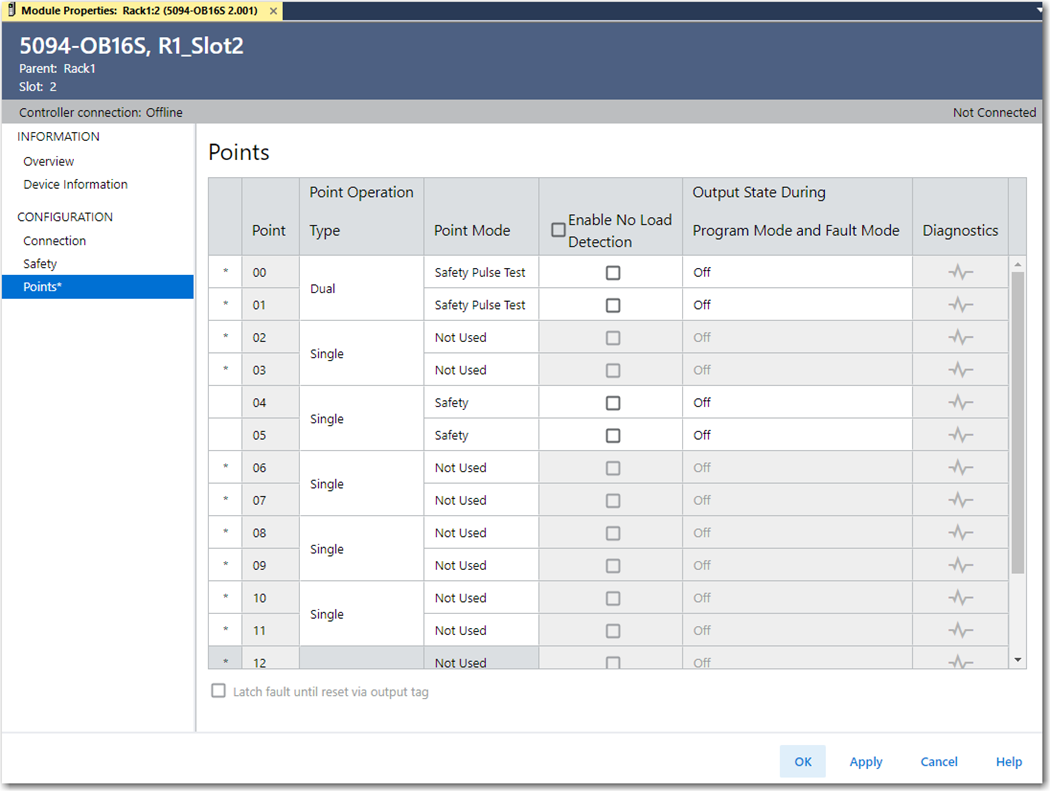

Output Points Operation Types
Output Points Operation Types
